2. Real-time location and tracking, track playback
3. Support vibration alarm, overspeed alarm, entry and exit of the electronic fence alarm
4. Ultra-small volume, the body is only the size of a cigarette lighter
5. Simple installation, do not press the boot button, on the power is to work
6. Built-in spare battery, illegal demolition immediately alarm reminder
7. Relays can be connected to realize the remote oil and power disconnection function
8. GPS + Beidou + LBS triple positioning (extended WIFI positioning)
Detail
Model Name #:
HS102
Specification:
1. Working Voltage: 9-90V DC
2. Working Temperature: -20℃～+70℃
3. Working Humidity: 20%-80%RH
4. Internal Battery Capacity: 100mAh
5. Working Current：≈22mA (12vDC)
6. Working Current：≈12mA (24vDC)
7. Main chip: MT6261
8. Network: 2G
9. Location Accuracy: 10m(2DM)
10. Cold Start: 38seconds,Warm Start: 28seconds,Hot Start: 2seconds
11. GPRS: Class 12,TCP/IP
12. Weight: 28g
13. Dimension: 64.5mm*23.5mm*12.6mm
Functions:
1. GPS+AGPS+LBS Multi-Mode Positioning
2. ACC Detection
3. Vibration Alert
4. Burglar Alert
5. Overspeed Alert
6. Low Battery Alert
7. GEO Fence
8. Historical Route
9. Cut off/Resume oil(optional, relay required)
Packing Details:
1. Accessories: Device,User manual, Power cord
2. Weight: 95g/set
3. Box demensions: 12*8*4cm
4. Carton demensions: 42*25.8*25.2cm
5. Packing: 50sets/CTN
6. Weight: 5 kg/CTN

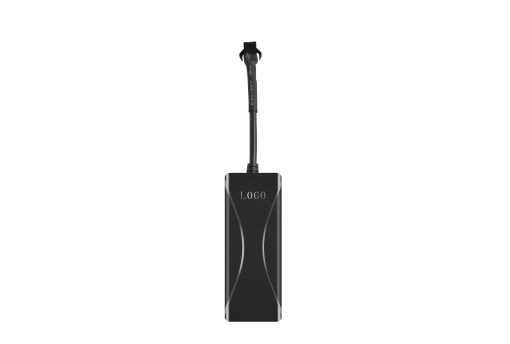

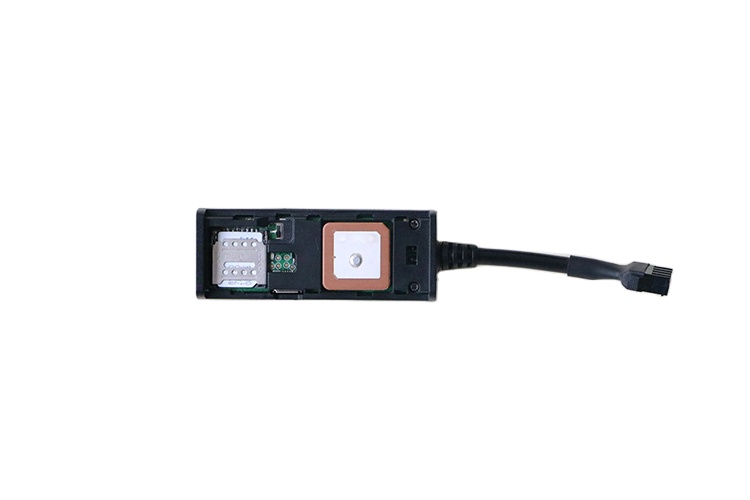

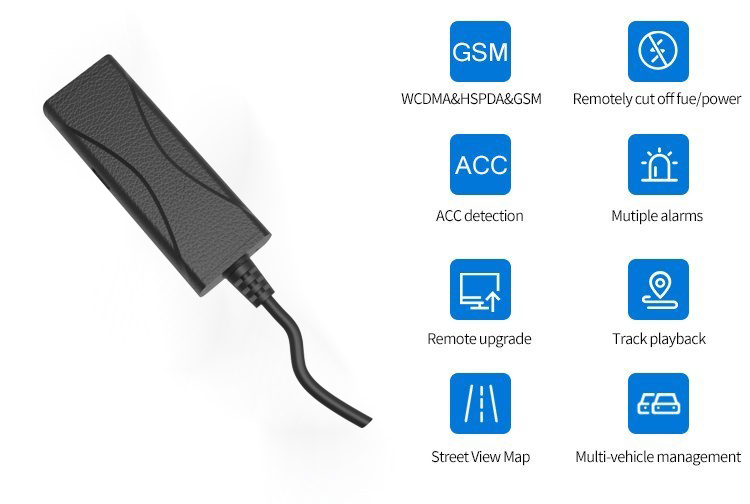

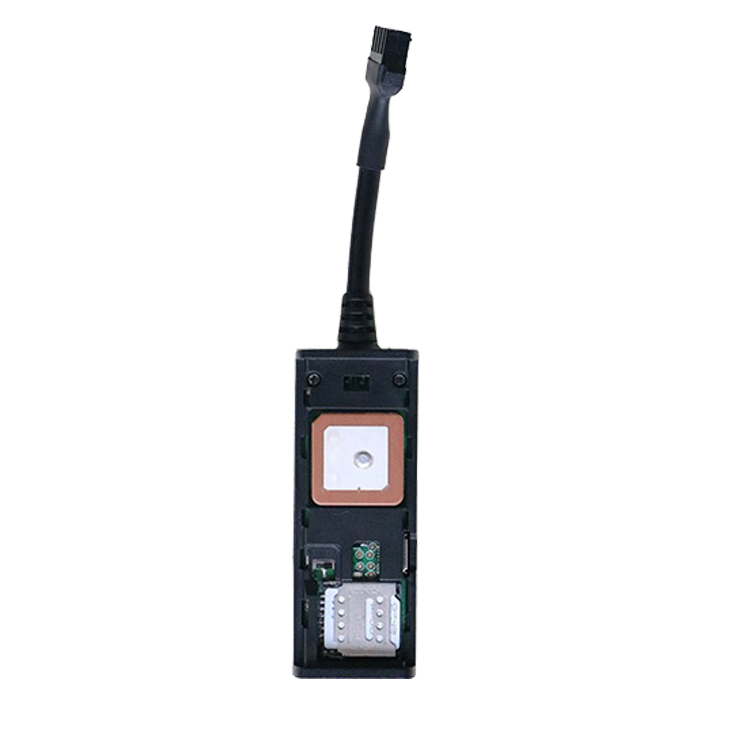

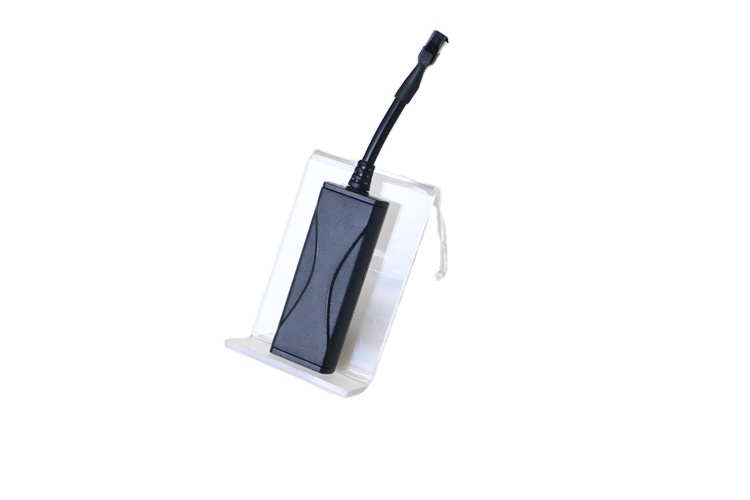

Product Pictures:
