2. Real-time location and tracking, track playback
3. Support vibration alarm, overspeed alarm, entry and exit of the electronic fence alarm
4. Ultra-small volume, the body is only the size of a cigarette lighter
5. Simple installation, do not press the boot button, on the power is to work
6. Relays can be connected to realize the remote oil and power disconnection function
7. GPS + Beidou + LBS triple positioning (extended WIFI positioning)
Detail
Model Name #:
HS103R
Specification:
1. Working Voltage: DC 7-90V
2. Working Temperature: -20～70℃
3. Working Humidity: 5% ~ 90%
4. Working Current: ≈55mA
5. Minimum Standby Current: ≈10 mA
6. Average Standby Current: ≈ 2.5 mA
7. GPS Chip: AT6558
8. Commumication Module: Simcom A7670SA
9. Network: 2G/4G
10. Tracking Sensitivity: -159dBm
11. Capture Sensitivity：-148dBm
12. Location Accuracy: <10m
13. Weight: 80g
14. Dimension: 79mm*32mm*17mm
Functions:
1. GPS+AGPS+LBS Multi-Mode Positioning
2. ACC Detection
3. Vibration Alert
4. Burglar Alert
5. Overspeed Alert
6. Low Battery Alert
7. GEO Fence
8. Historical Route
9. Cut off/Resume oil(optional, relay required)
Packing Details:
1. Accessories: Device,User manual, Power cord
2. Weight: 115g/set
3. Box demensions: 12*8*4cm
4. Carton demensions: 42*25.8*25.2cm
5. Packing: 50sets/CTN
6. Weight: 6kg/CTN

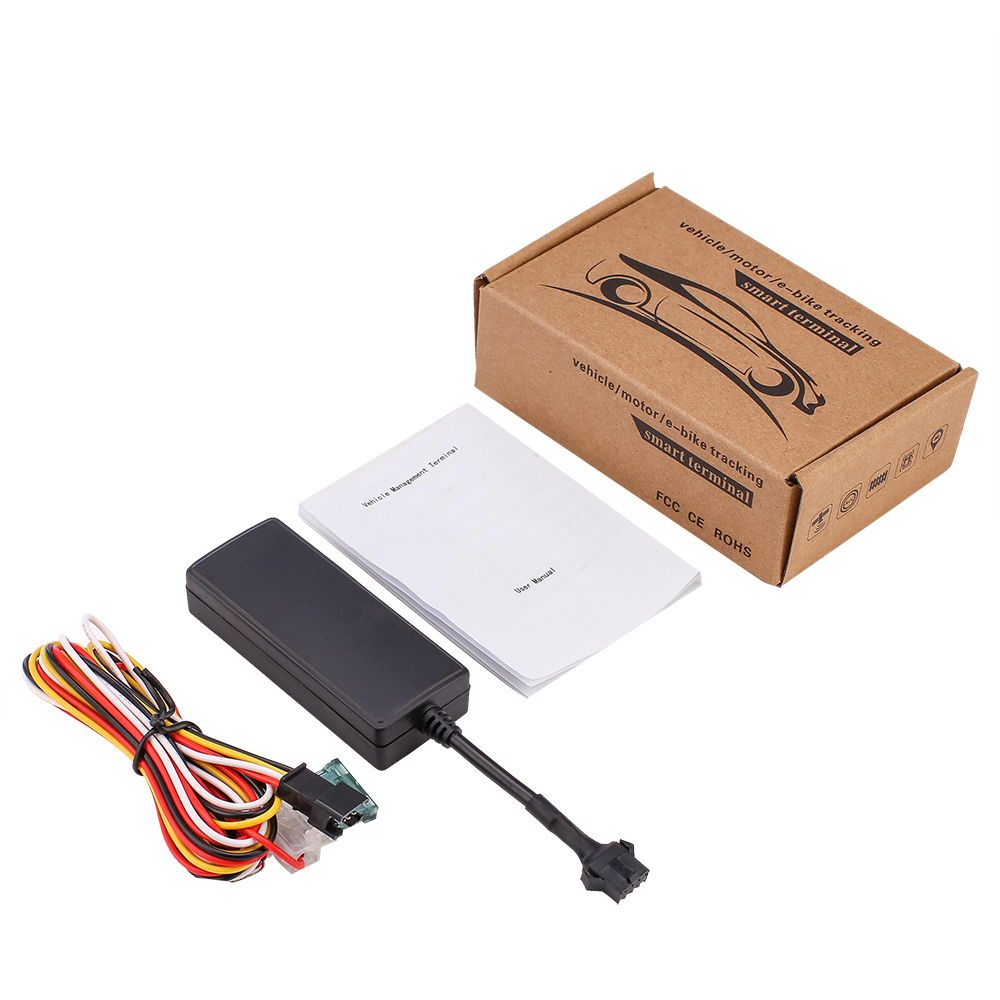

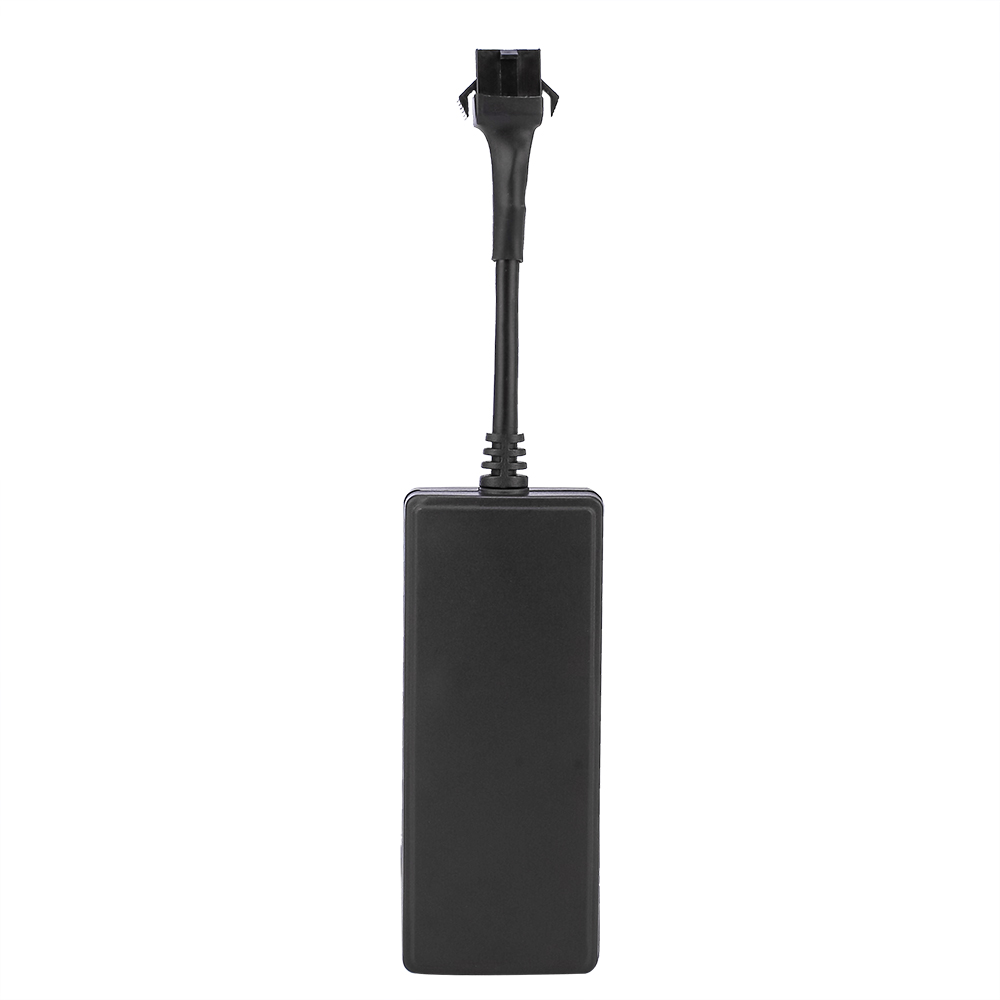

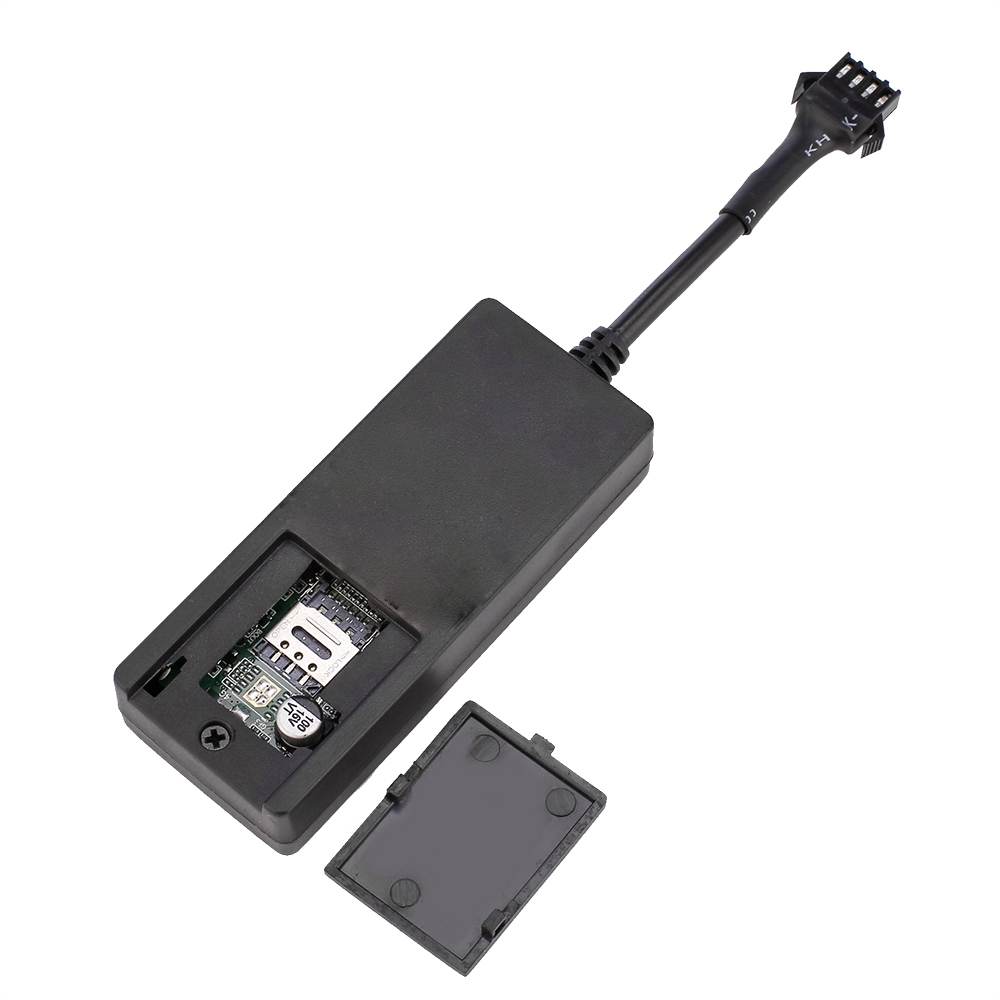

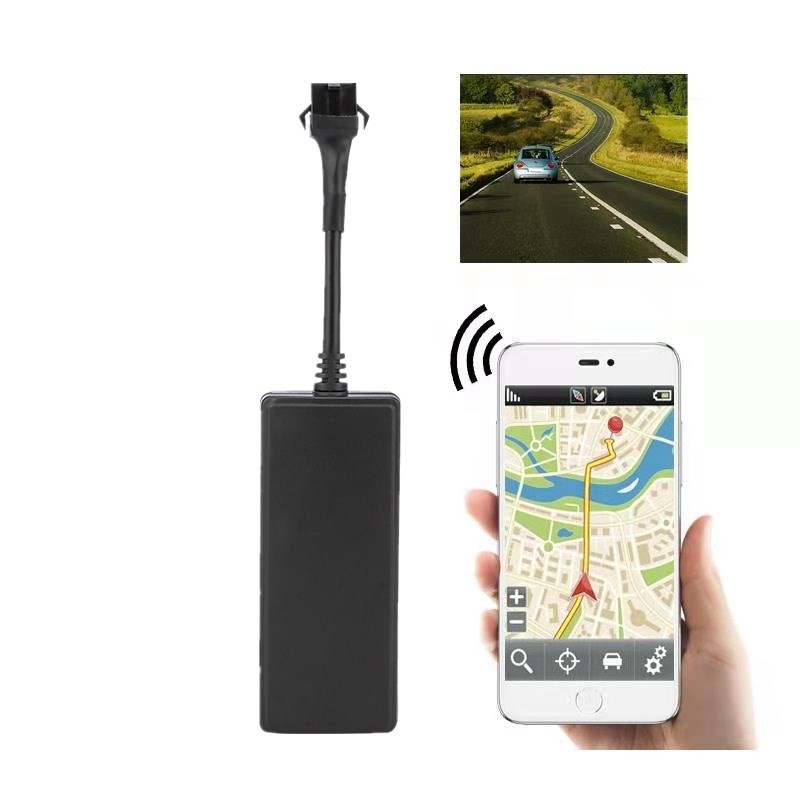

Product Pictures:
