2. Real-time location and tracking, track playback
3. Support vibration alarm, overspeed alarm, entry and exit of the electronic fence alarm
4. Ultra-small volume, the body is only the size of a cigarette lighter
5. Simple installation, do not press the boot button, on the power is to work
6. Built-in spare battery, illegal demolition immediately alarm reminder
7. Relays can be connected to realize the remote oil and power disconnection function
8. GPS + Beidou + LBS triple positioning (extended WIFI positioning)
Detail
Model Name #:
HS106R
Specification:
1. Working Voltage: 9-36VDC
2. Internal Battery Capacity: 200mAh /3.7V Li-Polymer battery
3. Working Temperature: -20°C to +70°C
4. Working Current：≈50mA
5. Standby Current：≈5mA
6. Chip Module: A7670C+AT6558R
7. Network: 2G/4G
8. Tracking Sensitivity: -165dBm
9. Location Accuracy : <5m
10. Cold status：<35s，Hot status：<1s
11. Transmission Protocol: Class12, TCP/IP
12. Weight：51g
13. Dimension: 89mm*44mm*16mm
Functions:
1. GPS+AGPS+LBS Multi-Mode Positioning
2. ACC Detection
3. Vibration Alert
4. Burglar Alert
5. Overspeed Alert
6. Low Battery Alert
7. GEO Fence
8. Historical Route
9. Cut off/Resume oil(optional, relay required)
Packing Details:
1. Accessories: Device,User manual, Power cord
2. Weight: 102 g/set
3. Box demensions: 12*8*4cm
4. Carton demensions: 45.5*29.5*48.5 cm
5. Packing: 100 sets/CTN
6. Weight: 16.8 kg

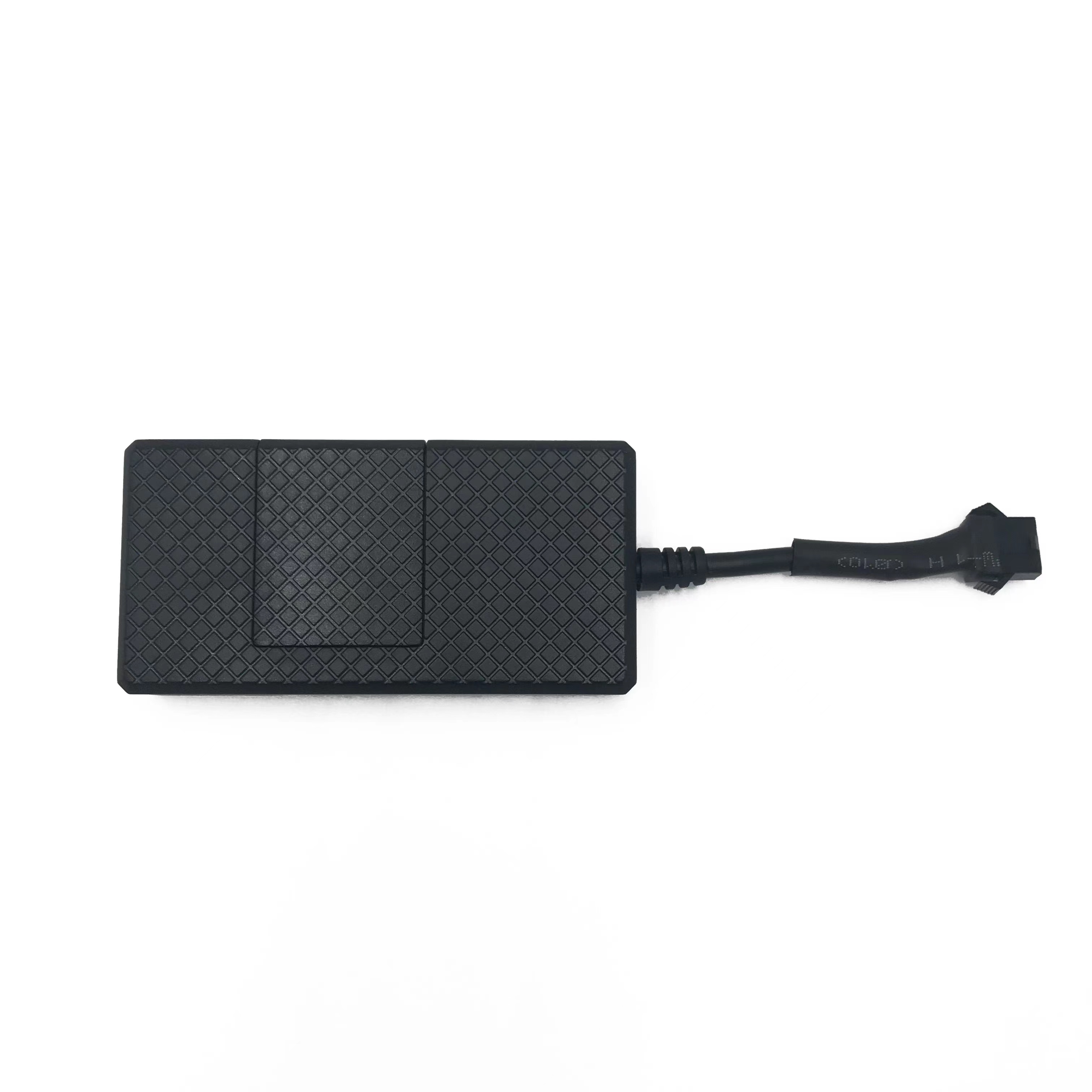

Product Pictures:
