2. Real-time location and tracking, track playback
3. Support vibration alarm, overspeed alarm, entry and exit of the electronic fence alarm
4. Ultra-small volume, the body is only the size of a cigarette lighter
5. Simple installation, do not press the boot button, on the power is to work
6. Built-in spare battery, illegal demolition immediately alarm reminder
7. Relays can be connected to realize the remote oil and power disconnection function
8. GPS + Beidou + LBS triple positioning (extended WIFI positioning)
Detail
Model Name #:
HS105A
Specification:
1. Working Voltage: DC 9V - 95V
2. Internal Battery Capacity: 140mAh (3.7v)
3. Working Temperature: -20℃ - 75℃
4. Storage Temperature: -30℃ - 80℃
5. Working Humidity: 10%-85%
6. Working Current：≈38mA (12vDC)
7. Standby Current：≈10mA(12vDC)
8. Communication Module brand/Chip Module: SIMCOM-A7670C
9. Network: 4G
10. Tracking Sensitivity: -162 dBm
11. Capture Sensitivity: -158 dBm
12. Location Accuracy: < 5m
13. Cold status: 32 Seconds,Hot status: 1 Seconds
14. Transmission Protocol: TCP/IP
15. Weight: 53g
16. Dimension: 80mm*35mm*17mm

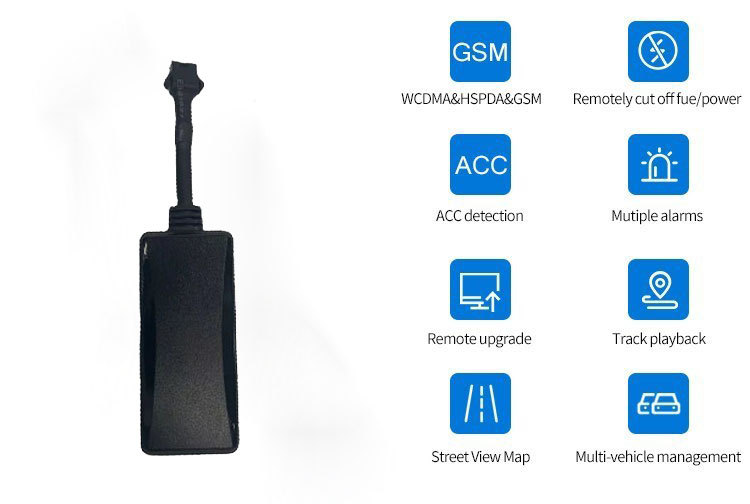

Functions:
1. GPS+AGPS+LBS Multi-Mode Positioning
2. ACC Detection
3. Vibration Alert
4. Burglar Alert
5. Overspeed Alert
6. Low Battery Alert
7. GEO Fence
8. Historical Route
9. Cut off/Resume oil(optional, relay required)
Packing Details:
1. Accessories: Device,User manual, Power cord
2. Weight: 115g/set
3. Box demensions: 12*8*4cm
4. Carton demensions: 45.5*42*21 cm
5. Packing: 100sets/CTN
6. Weight: 12kg

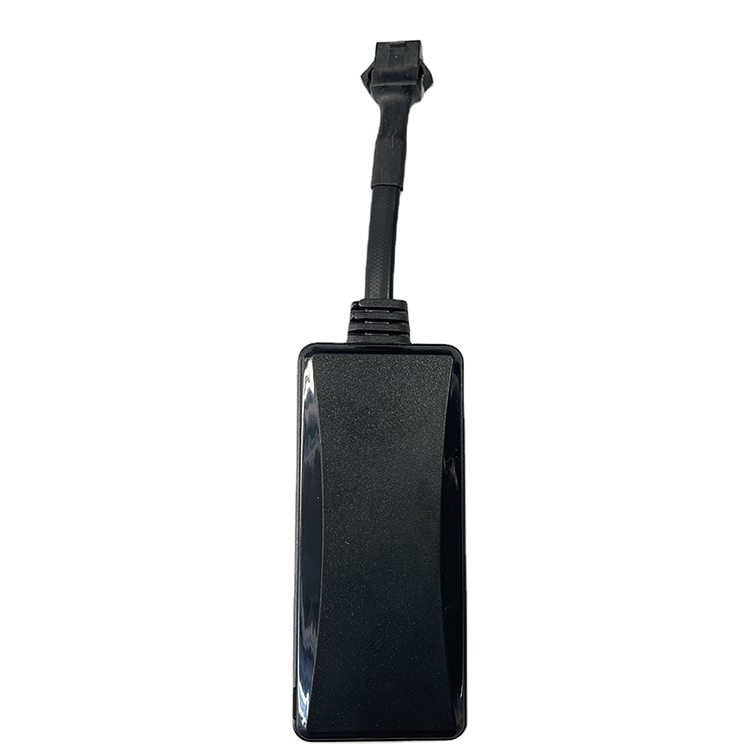

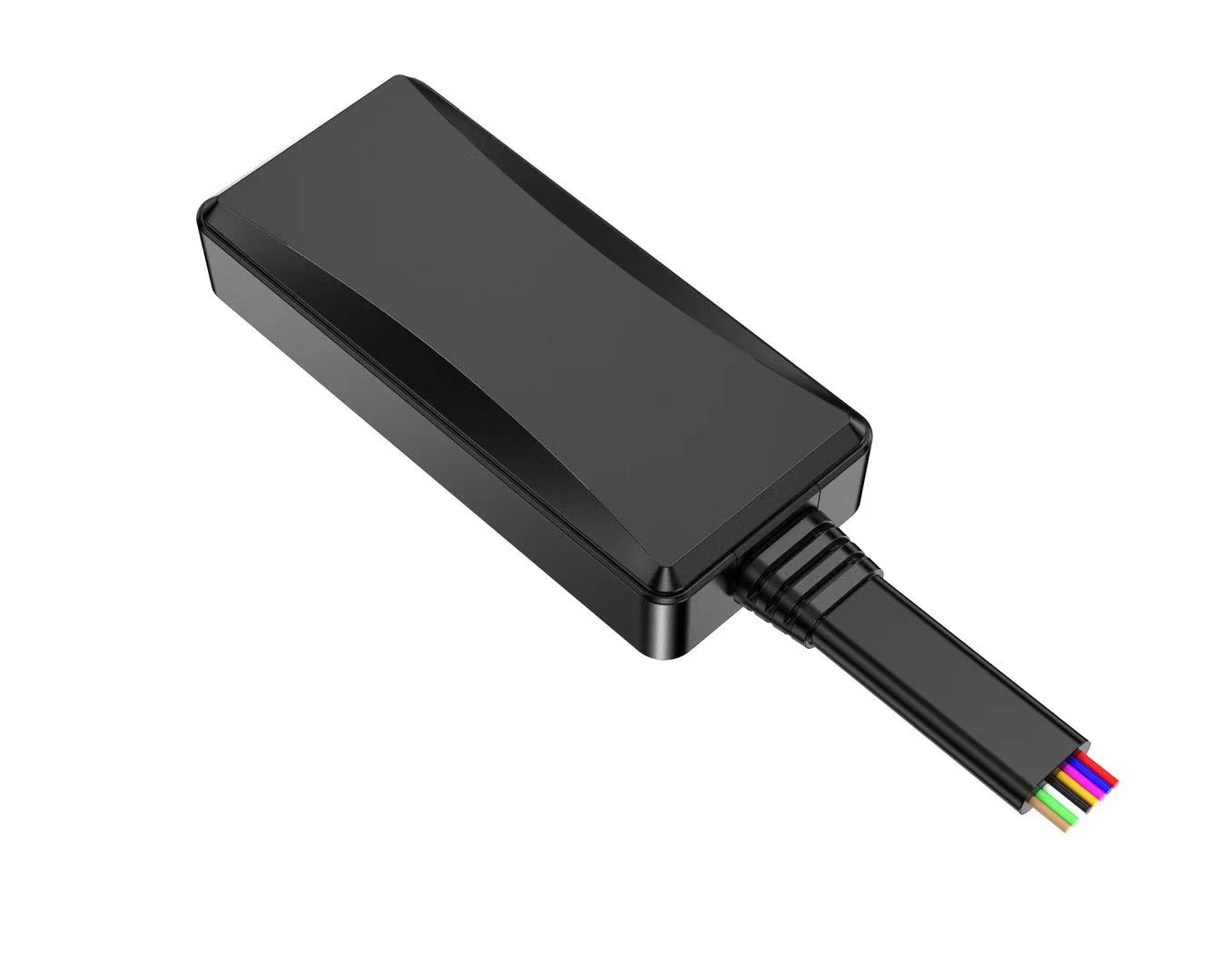

Product Pictures:
