2.Support electronic fence function, the user through the platform/APP delineate virtual electronic fence, when the device in and out of the fence can be identified by the platform and send out alarms.
3.Can send alarm SMS/phone call to the guardian number when an alarm occurs, and the alarm is uploaded to the platform at the same time.
4.Terminal using well-known manufacturers industrial grade high stability 4G module, built-in LTE high sensitivity antenna, support TCP/IP data transmission, support domain name/IP address to connect to the server.
5.Built-in large-capacity storage chip, support data storage in offline state, blind area data replenishment transmission; when the pet is in a place with weak wireless signal or serious interference, the data of the pet walking is temporarily stored in FLASH, and when the wireless signal returns to normal, it can replenish these data to realize data not missing.
6.Built-in 3-axis acceleration sensor, fusion of accurate acceleration algorithm, real-time access to the pet's current posture and other situation judgments.
7.High-sensitivity GPS/BDS dual-star positioning module, anti-jamming ceramic antenna to achieve a more stable signal for star search, support for AGPS fast positioning tracking and synchronized timing.
8.support online remote upgrade, remote configuration of product parameters.
9.Historical track platform retains 180 days.
Detail
Model Name #:
HP102
Specification:
1. Internal Battery Capacity: 700 mAh(3.7V)
2. Working Voltage: DC 3.4V - 4.5V
3. Working Current: 4V/60mA
4. Standby Current: 4V/5mA
5. Working Temperature:-20℃ - 75℃
6. Storage Temperature: -30℃ - 80℃
7. Working Humidity:10%-85% RH
8. GSM Module: SIMCOM A7670C
9. GPS Chip: AT6558R
10. Network: 4G
11. GPS Location Accuracy:<5m
12. Cold start time: Average 32 seconds;Hot start time: Average 1 seconds
13. Weight: 42.2g
14. Dimension: 75.8mm*37.6mm*19mm
Functions:
1. GPS+AGPS+LBS Multi-Mode Positioning
2. Waterproof IP67
3. Monitoring by Web platform/ Phone App/ SMS
4. Historical Route
5. GEO Fence
6. Voice monitor
7. Low Battery Alert
Packing Details:
1. Accessories: Device,Power cord,User manual
2. Weight: 129 g/set
3. Box demensions: 12.3*12.3*5.5cm
4. Carton demensions: 35.5*25.5*19 cm
5. Packing:50sets/CTN
6. Weight: 6.5 kg/CTN

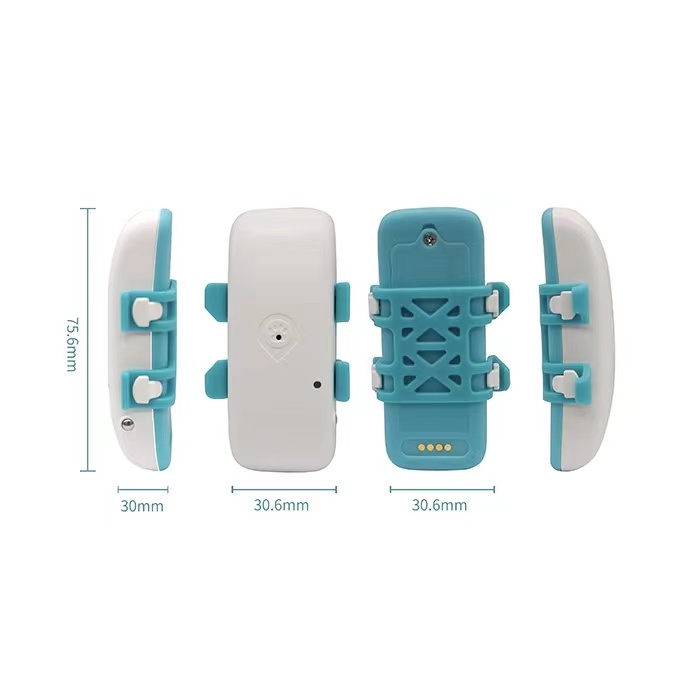

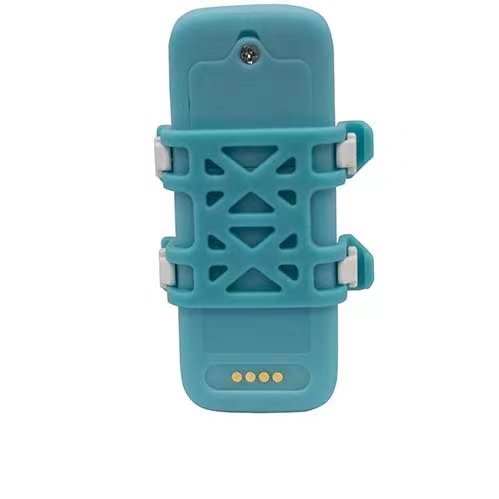

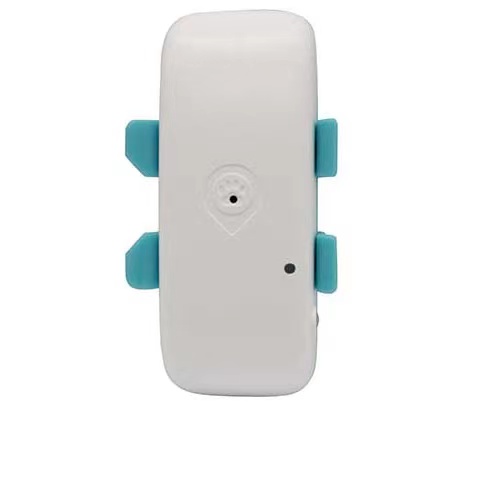

Product Pictures:
