2. SMS query location information;
3. Built-in vibration sensor, intelligent management of equipment power saving and vehicle anti-theft
management;
4. ACC ignition signal detection, ACC automatic fortification or disarming and real-time vehicle status
management (optional);
5. Built-in backup battery, the external power supply of the device can continue to work after removal, and support the alarm management of illegal wire cutting of the vehicle;
6. External oil-off relay, remote control management of vehicle oil-off and power-off (optional);
7. AGPS and LBS auxiliary positioning, GPS signal blind area can also be quickly located;
8. Electronic fence setting, status and alarm management of vehicle entry and exit fences;
9. 10 Turn and make up the pass, perfect driving trajectory management;
10. Blind zone retransmission, LTE signal blind zone without dead angle trajectory point management;
11. Support SMS to set the IP address and port of the communication terminal server in the device, and
support UDP or TCP communication mode;
12. TTL 3V serial port RX, TX, external serial port peripherals (optional).
13. Support a variety of working mode settings to manage the working mode of the device.
Detail
Model Name #:
HS109
Specification:
1. Working Voltage: 9-90V DC
2. Internal Battery Capacity: 90mAh 3.7V
3. Working Temperature: -20℃ - +70℃
4. Storage Temperature:-40℃ ~85℃
5. Working Humidity: 20% - 80% RH
6.Communication Module brand/Chip Module: ASR1603S
7. Network: 4G
8. GPRS: Class2,TCP/IP built in GSM Module
9. Tracking Sensitivity: -160dBm
10. Capture Sensitivity: -158dBm
11. Location Accuracy: <5m
12. Cold Start: <28sec;Hot Start:≤1sec;AGNSS: <15sec
13. Transmission Protocol: TCP
14. Weight: 55g (including Internal Battery Capacity)
15. Dimension: 77*27*15mm
Functions:
1. GPS+AGPS+LBS Multi-Mode Positioning
2. ACC Detection
3. Vibration Alert
4. Burglar Alert
5. Overspeed Alert
6. Low Battery Alert
7. GEO Fence
8. Historical Route
9. Cut off/Resume oil(optional, relay required)
Packing Details:
1. Accessories: Device,User manual, Power cord
2. Weight: 150g/set
3. Box demensions: 12*8*4cm
4. Carton demensions: 42*25.8*25.2cm
5. Packing: 50sets/CTN
6. Weight: 5kg/CTN

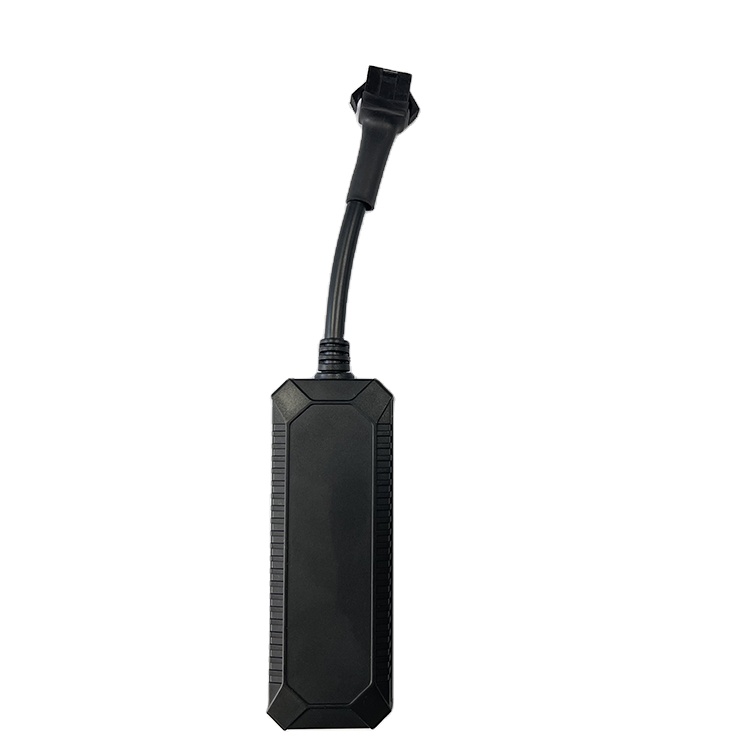

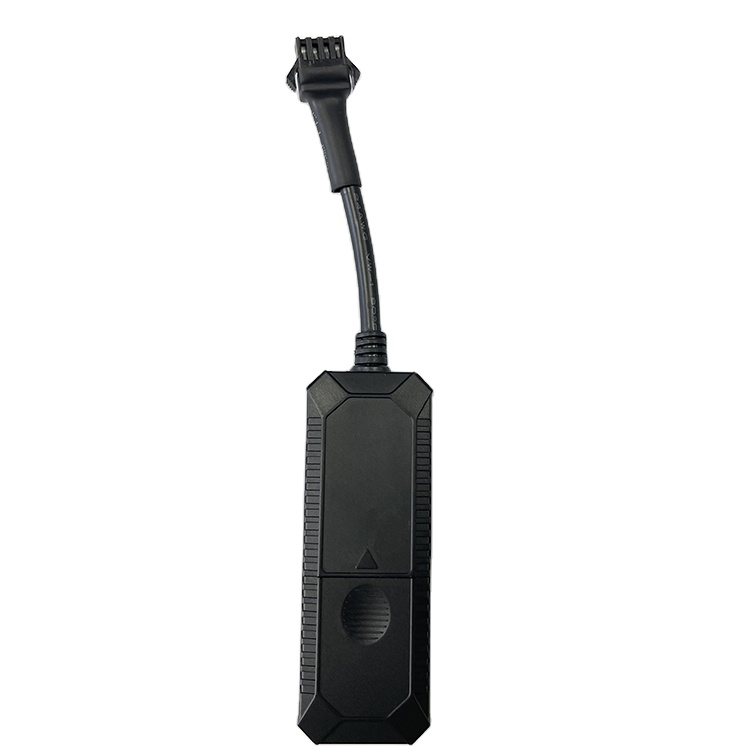

Product Pictures:
