Model Name #:

HB101

Specification：

1. Working Voltage: DC 10V~18V
2. Internal Battery Capacity: 50mA
3. Working Temperature: -25~+75℃
4. Storage Temperature: -40~+85℃
5. Working Current: ≈35mA（ACC ON）
6. Standby Current: ≈2.5mA（ACC OFF)
7. Network: 2G
8. Location Accuracy: ＜10m
9. Transmission Protocol: TCP
10. Weight: 32g (including Internal Battery Capacity)
11. Dimension: 48mm*25mm*23mm

Functions：

1. GPS+AGPS+LBS Multi-Mode Positioning
2. ACC Detection
3. Vibration Alert
4. Burglar Alert
5. Overspeed Alert
6. Low Battery Alert
7. GEO Fence
8. Historical Route
9. Vehicle Diagnostic(optional)

Packing Details：

1. Accessories: Device,User manual
2. Weight: 76 g/set
3. Box demensions: 11.5*7.5*3.5cm
4. Carton demensions: 47*30.5*33.5 cm
5. Packing: 100 sets/CTN
6. Weight: 8.3 kg/CTN

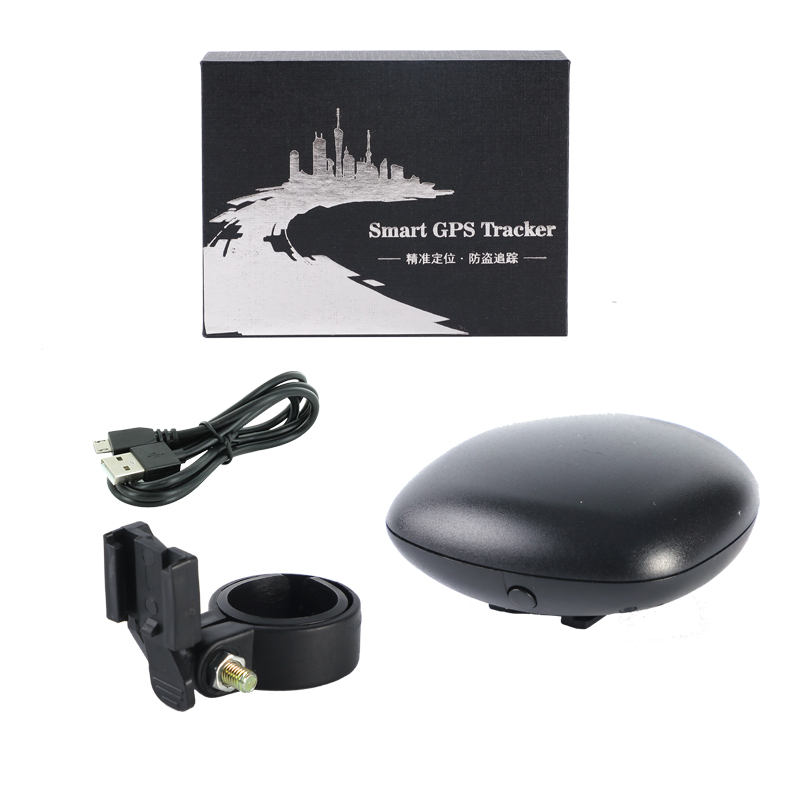

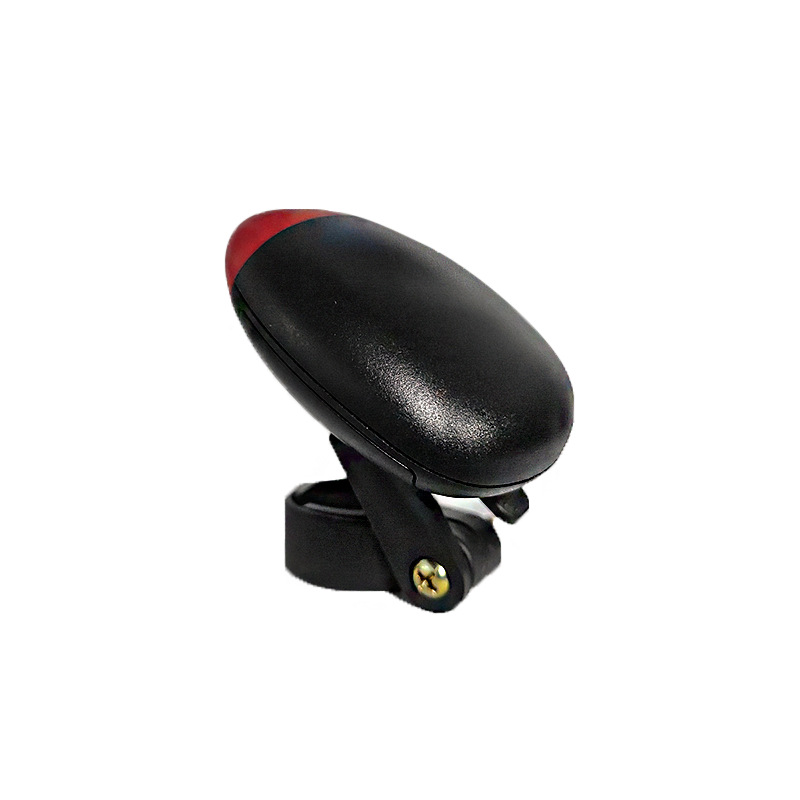

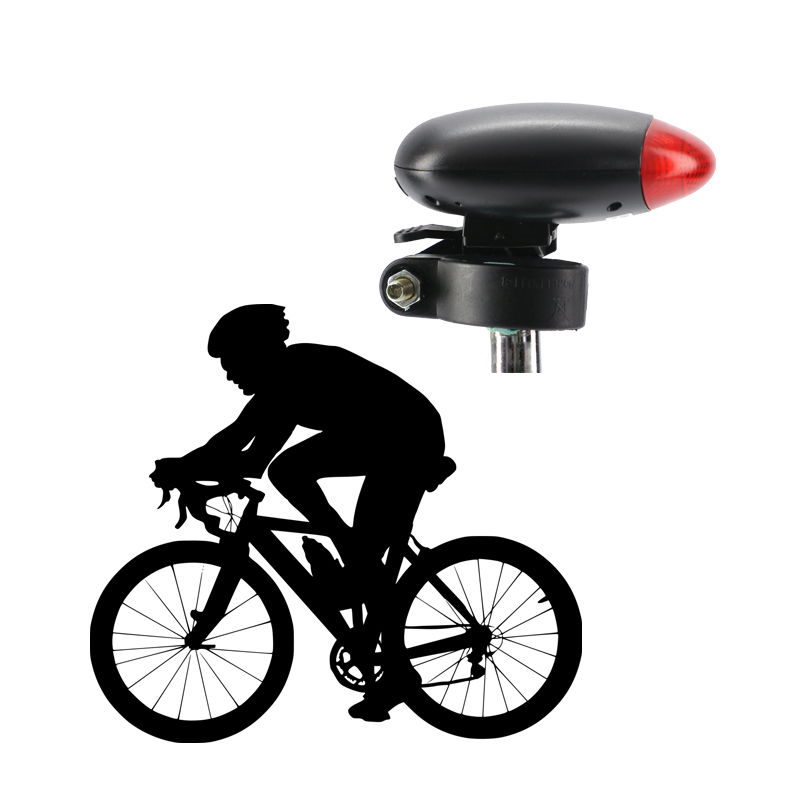

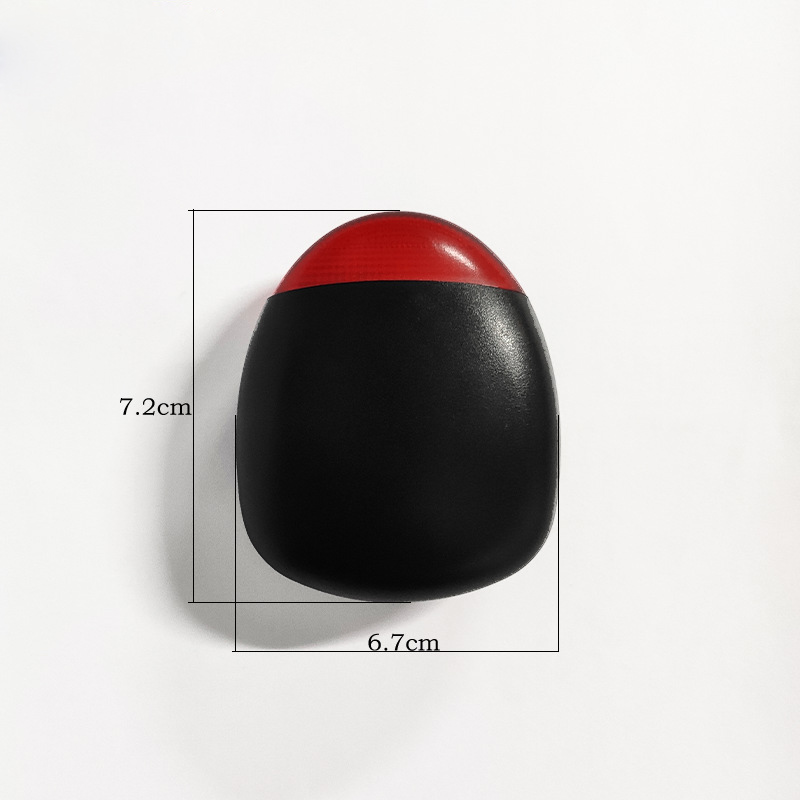

Product Pictures：
